Chocolate Cheese Cream Core Filling Puff Snacks Machine Double Screw Extrusion
Brief Information
| Type: core filling food processing machinery | Brand Name: Keysong |
| Application: core filling snacks/biscuit/corn flakes | Warranty: 1 year |
| After-sales Service: Yes | Minimum order: 1 SET |
| Voltage: 380v 50Hz | Weight: 1500kg |
Product Description
1. Description:

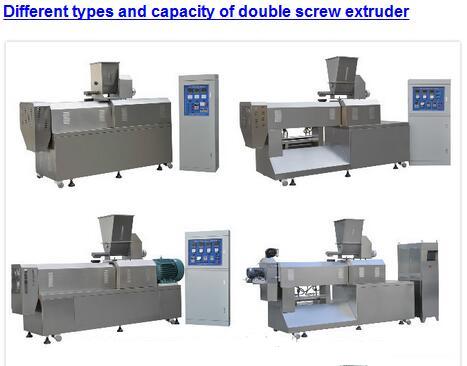

CE certificate pillow shape core filling snack food making machine includes batch mixer and screw feeder, twin screw extruder and forming equipment, filling stuff equipment, Belt dryers and coating drum.
2. Raw materials: the soft filling materials include chocolate, cream, jelly, fruit paste, date paste. The ingredients of the outer part is generally wheat, a variety of other cereal grains can also be progressed such as rice, corn, barley, rye, oats, sorghum, etc.
3. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Capacity: 150kg/h, 240kg/h, 500kg/h
5. Flow chart: Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
8. Technical Parameters
| Model | Installed power | Real power | Output | Dimension |
| KS65 | 81.5kw | 53kw | 100-150kg/h | 21000x1200x2200mm |
| KS70 | 115kw | 76kw | 200-240kg/h | 23000x1500x2200mm |
| KS85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
8. Product Samples
9. Packing and Shipping
Packed by standard wooden case outside and wrapped by plastic film inside then shipped by container.
10. Our Service
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free installation and commissioning of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and life-time maintenance service;
8. Engineers available to service machinery overseas.
9. Provide technical exchanging
10. Provide English Version of Installation/Operation/Service/Maintenance Manual
